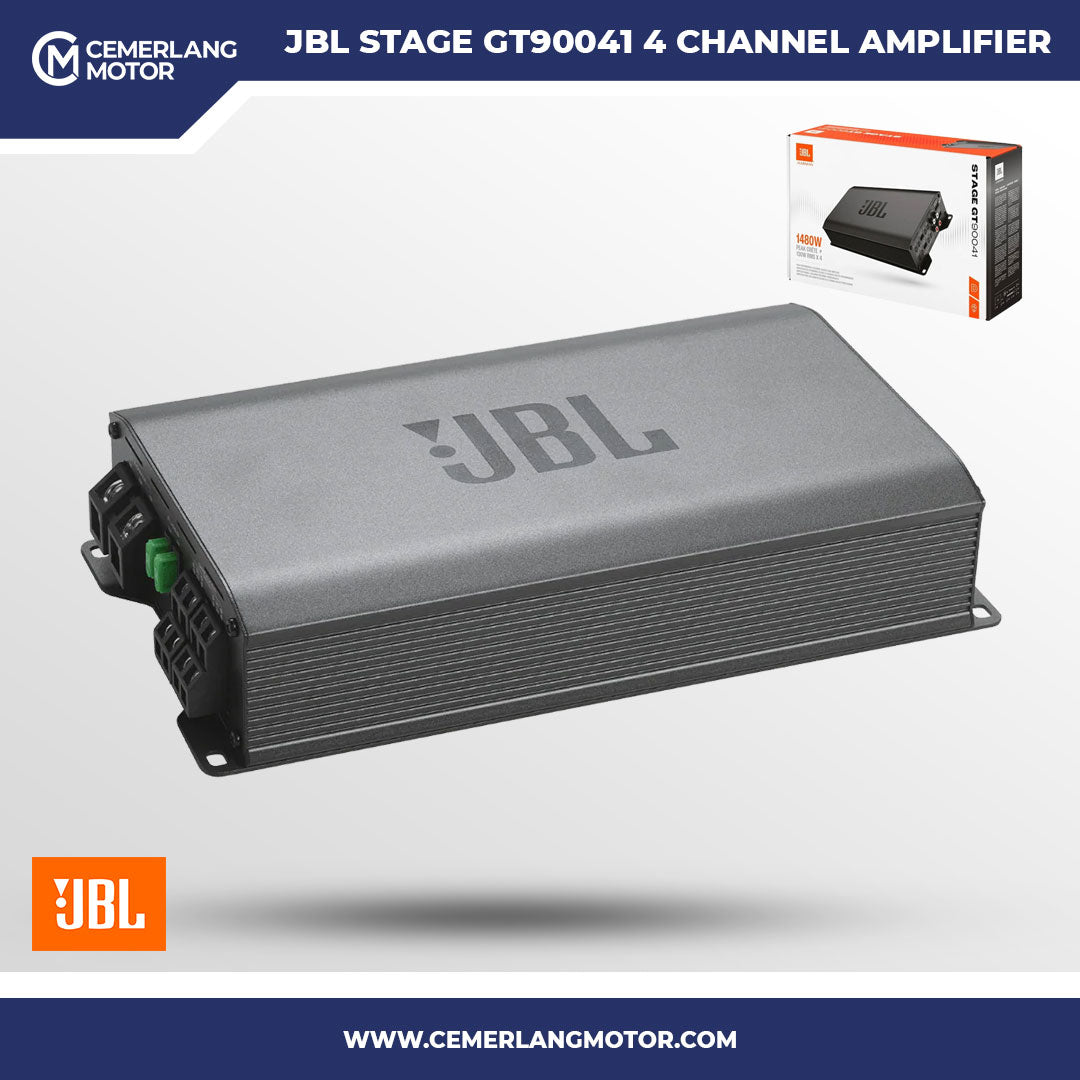

JBL STAGE GT90041 POWER AMPLIFIER 4 CHANNEL

Description

Key Features

• Power Output
    • 90 W RMS × 4 channels @ 4 ohms
    • 130 W RMS × 4 channels @ 2 ohms
    • 260 W RMS × 2 channels bridged @ 4 ohms
    • Peak power up to ~1,000 W

• Signal and Tuning Controls
    • Adjustable high-pass and low-pass crossovers (32 Hz – 320 Hz)
    • Bass EQ boost up to +12 dB at 45 Hz
    • Wide input sensitivity (low-level RCA and high-level speaker inputs) for easy OEM integration

• Sound Performance
    • Frequency response: 20 Hz – 20 kHz (±1 dB)
    • Low Total Harmonic Distortion for clear, detailed sound
    • Signal-to-Noise Ratio >80 dB

• Protection & Reliability
    • Built-in protection against overheating, short circuits, over-voltage, and under-voltage
    • Stable operation with modern vehicle electrical systems

• Size & Build
    • Amplifier dimensions: ~320 × 180 × 55 mm (L × W × H)
    • Net weight: ~2.3 kg
    • Compact, rugged chassis for flexible installation
